Portable Flange Facers for resurfacing pipe and tube flanges flange facing machine

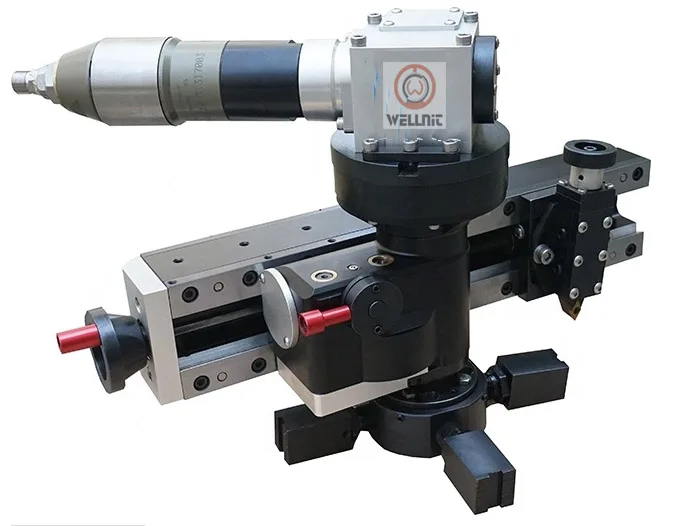

WFP-610 portable flange facer is a reliable product, portable flange facing macine are easy to use for resurfacing pipe and tube falnges, with no special training requirement , it's good to learn and control.
Portable flange facing machine, it's powerful and versatile tools which makes it cut through the toughest material and work on a wide range of face diameter.
On site flange facer mounted inside and outside the piep for stable and accurate machining.
WFP-610 Flange Facing is an overall cost effective technique which allows you to face, bevel,and turn pipe,value and pump flange with ease . Which in turn helps to keep your plant running efficiently, safely and more environmentally friendly.
| Facing diameter | 50-610mm |
| Power option | Electric /Pneumatic/ Servo motor |
| Customized | Yes |
It gives machine shop accuracy , combined with ease of handing and portablity in the flange range .Spur gears engage directly on the drive ring, keep power requirements and losses to a minimum and allowing maximum torque at the cutting tool . When the machine is used in the vertical plane , balancing is greatly reduced.
WFP-610 can be used in horizontally,verically or overhead planes.
Here is the drawing of WFP-610 portable flange facing machine
Quick and Easy Setup & Removal
• Separate mounting chuck.
• All centering and leveling is done on the chuck.
Lightweight
• Body of machine weighs only 99 lbs (45 kg).
• Smallest mounting chuck weighs about 5 lbs (2.2 kg).
Safe and Quiet Operation
• Stationary feed rate selector.
• Machine is controlled without touching any moving parts.
• Exhaust air is routed through body of machine for increased muffling.
Simplified Operation
• Single selector switch for bidirectional radial feed or vertical downfeed.
• One wrench size for clamping jaws and body draw bolt.
Cuts Chamfers and Grooves
• Compound tool head and downfeed for cutting angles and grooves.
The WFP-610 machine is supplied complete with toolkit including tools and inserts, air filter lubricator and hose connection, all required mounting base and extensions, storage / shipping box, CE certificate, packing list and manual.
WFP-610 portable flange facing machine applications:
Flange facing machine application for Oil, Gas and Chemical ,Power Generation ,Heavy Equipment ,Ship building & repair
Typical applications:
• Piping system flanges
• Valve flanges and bonnet flanges
• Heat exchanger flanges
• Vessel flanges
• Flange faces on piping systems
• Pump housing flanges
• Weld preps
• Tube sheet bundles.
• Bearing mounting bases
• Final drive hubs
• Bull gear faces
• Manufacturing of mining equipment
• Slew rings
• Bearing mounting bases
• Crane pedestal flange.
Portable flange facing machine flange facer portable machine application:
Flange face machine
RTJ grooving surface remachining
Counterbore
Chamfer

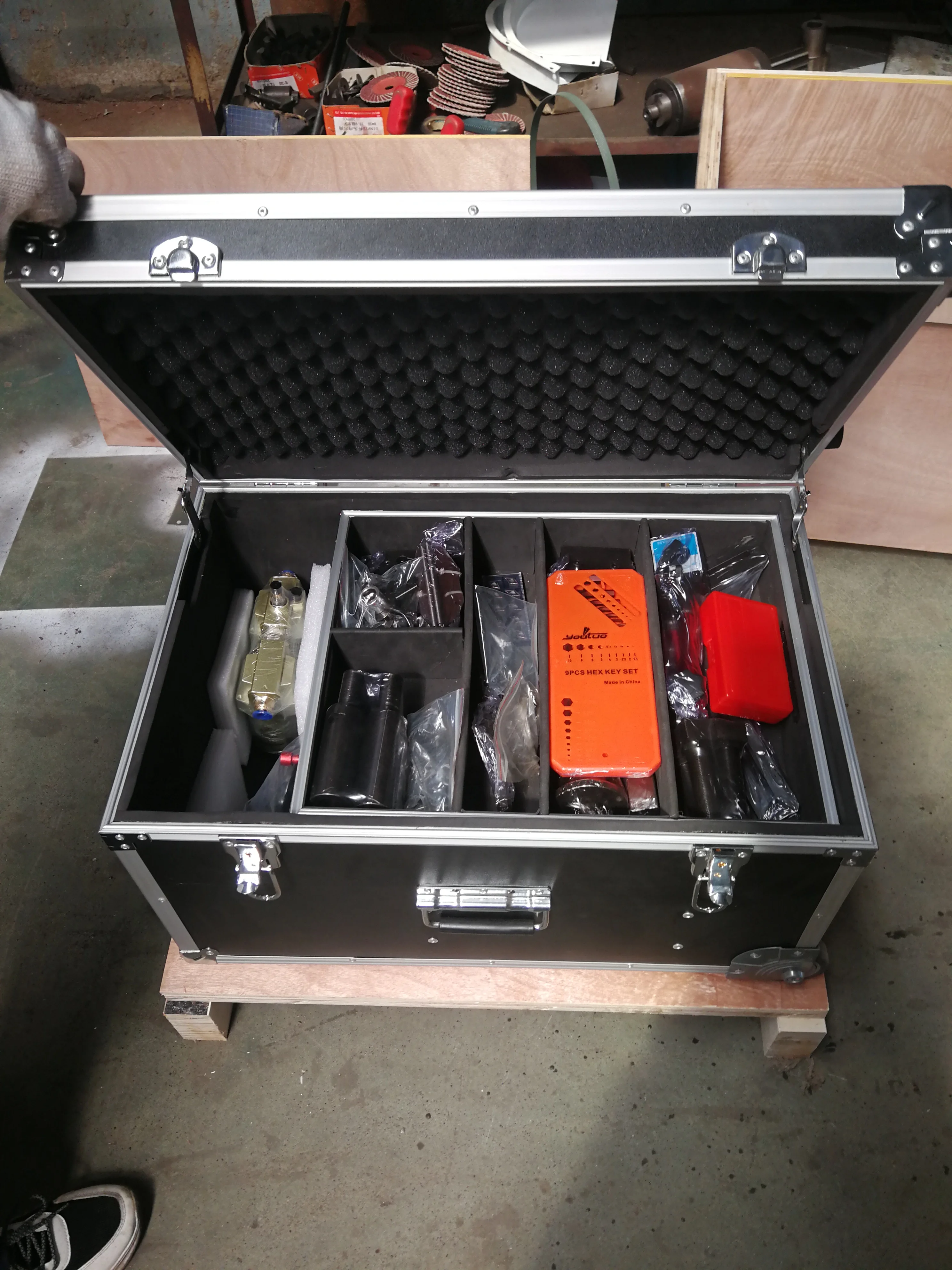

Packing pictures:
package :
size :
77 x 51 x 55cm -
Weight:
62kg+18kgs wooden box in total (Aluminum box+wooden box)
Easy to carry and reliable quality on site shipping.
